Plot fitted MFRM results with base R

Plot fitted MFRM results with base R

Usage

# S3 method for class 'mfrm_fit'
plot(
  x,
  type = NULL,
  facet = NULL,
  top_n = 30,
  theta_range = c(-6, 6),
  theta_points = 241,
  title = NULL,
  palette = NULL,
  label_angle = 45,
  show_ci = NULL,
  ci_level = 0.95,
  group = NULL,
  diagnostics = NULL,
  include_fit_measures = TRUE,
  fit_stat = c("Infit", "Outfit"),
  fit_scale = c("mnsq", "zstd"),
  zstd_method = c("engine", "facets"),
  include_person = FALSE,
  person_subset = NULL,
  top_n_person = 30,
  person_labels = c("flagged", "all", "none"),
  facet_labels = c("all", "flagged", "none"),
  panel = c("combined", "facet"),
  fit_range = c(0.5, 1.5),
  zstd_cut = 2,
  draw = TRUE,
  preset = c("standard", "publication", "compact", "monochrome"),
  renderer = NULL,
  wright_style = c("native", "facets_style"),
  category_labels = NULL,
  rows_per_logit = 2L,
  wright_range = NULL,
  extreme_placement = c("ends", "estimate"),
  persons_per_star = NULL,
  show_title = TRUE,
  show_notes = TRUE,
  ...,
  level = NULL
)

Arguments

x

An mfrm_fit object from fit_mfrm().

type

Plot type. Omit type (or use NULL / "wright") for the primary native Wright map. Use "bundle", "all", or "default" for the three-part fit bundle; otherwise choose one of "facet", "person", "step", "wright", "pathway", "fit_pathway", "ccc", "ccc_surface", or "category_surface". "pathway" is the theta-to-expected-score display; "fit_pathway" is the fit-statistic-to-measure display.

facet

Optional facet name for type = "facet".

top_n

Maximum number of non-person facet locations retained by the native Wright map for compact displays. Step transitions are always retained separately and do not consume this limit; any omitted facet locations are counted in the returned retention table and disclosed in the plot subtitle/note. Use Inf for a complete all-level final map. The FACETS-style payload always retains every fitted facet and step location.

theta_range

Numeric length-2 range for pathway, CCC, and category-surface plot data.

theta_points

Number of theta grid points used for pathway, CCC, and category-surface plot data.

title

Optional custom title.

palette

Optional color overrides.

label_angle

Rotation angle for x-axis labels where applicable.

show_ci

Whether to add approximate confidence intervals when available. NULL selects the display-specific default: TRUE for the primary native Wright map and type = "fit_pathway", and FALSE for the FACETS-style ruler and other plot types. With renderer = "facets", explicitly setting show_ci = TRUE creates a hybrid display: FACETS-style ruler grammar with mfrmr uncertainty intervals.

ci_level

Confidence level used when show_ci = TRUE.

group

Optional grouping for type = "wright" to overlay per-group person-density curves (DIF / DFF screening view). Either a column name (looked up first in group_data when supplied through ..., then in fit$prep$data) or a vector aligned with fit$facets$person. Ignored for other type values and for wright_style = "facets_style", whose person column is a single FACETS-style star frequency. To pass the source data alongside, use plot(fit, type = "wright", group = "MyCol", group_data = <df>).

diagnostics

Optional matching output from diagnose_mfrm(). Recompute it after refitting; mismatched or outdated readiness records are rejected. When supplied, Wright-map standard errors and precision metadata reuse matching rows from diagnostics$measures without replacing fitted coordinates, while pathway plot data reuse fit_measures, fit_status, and curve_fit_status instead of recomputing diagnostics.

include_fit_measures

If TRUE (default), pathway plot data include tidy fit-measure and fit-status tables for custom R graphics. Set to FALSE when only the curve coordinates are needed.

fit_stat

For type = "fit_pathway", the horizontal fit statistic: "Infit" (default) or "Outfit".

fit_scale

For type = "fit_pathway", use mean squares ("mnsq") or standardized fit ("zstd") on the horizontal axis.

zstd_method

For a ZSTD fit pathway, use the package engine degrees of freedom ("engine", default) or the FACETS/Wright-Masters companion calculation ("facets"). The latter is a comparison aid, not a claim of complete FACETS output equivalence.

include_person

If TRUE, include person rows in a fit pathway.

person_subset

Optional character vector of person IDs retained in a fit pathway before ranking.

top_n_person

Maximum person rows retained in a fit pathway, ranked by distance from expected fit. Use Inf for all selected persons.

person_labels

Person-label policy for a fit pathway: "flagged" (default), "all", or "none".

facet_labels

Facet-level label policy for a fit pathway: "all" (default), "flagged", or "none". This changes drawn labels only; all retained facet rows remain in the draw-free table.

panel

Fit-pathway layout: "combined" (distinguish persons by shape) or "facet" (one base-graphics panel per facet).

fit_range

Mean-square review lines for a fit pathway.

zstd_cut

Absolute ZSTD review line for a fit pathway.

draw

If TRUE, draw the plot with base graphics.

preset

Visual preset ("standard", "publication", "compact", or "monochrome").

renderer

Wright-map renderer. Use "native" (default) or "facets" for the FACETS Table 6-style visual layout. This is the canonical selector for new code. The native map is the primary display and includes available facet uncertainty by default. The closest FACETS-style visual uses show_ci = FALSE.

wright_style

Wright-map renderer. "native" preserves the package's histogram, point, range, and facet-SE display. "facets_style" adds a FACETS Table 6-style text ruler with person-frequency stars, signed facet headers, and labeled score-transition lines. It is a visual-layout option, not a claim of numerical equivalence with FACETS. This explicit style name is equivalent to renderer = "facets". Adding show_ci = TRUE to that style is an mfrmr/FACETS hybrid rather than the closest FACETS-style view.

category_labels

Optional score rubric labels used by wright_style = "facets_style". Supply a named character vector keyed by original score, an unnamed vector with one label per retained category, or a data frame with Score and Label columns.

rows_per_logit

Number of FACETS-style ruler rows per logit.

wright_range

Optional finite increasing length-2 logit range for the FACETS-style ruler. NULL derives a range that contains the fitted data.

extreme_placement

In the FACETS-style renderer, place extreme-score persons at the ruler "ends" or retain their fitted "estimate".

persons_per_star

Number of persons represented by one * in the FACETS-style frequency column. NULL chooses a compact value automatically.

show_title

Logical; display the main plot title. Structural panel headings, axis labels, legends, and data labels remain visible.

show_notes

Logical; display explanatory subtitles, footnotes, and review-only title markers. Notes remain available in the returned object, and R warnings are still issued when this is FALSE.

...

Additional arguments ignored for S3 compatibility.

level

Named alternative to ci_level, a single number strictly between 0 and 1. Supply only one of these names, even when equal. Both omitted retain 0.95. This controls the fitted-model plot intervals; attached interval results retain the level chosen when they were computed.

Value

Invisibly, an mfrm_plot_data object (default and for any single type), or an mfrm_plot_bundle when type = "bundle" / "all" / "default". Each returned fit plot includes domain-specific readiness and an interpretation status in its data payload, plus a notes table and display settings. It also includes a one-row scale_contract table recording the fitted coordinate basis, population SD when applicable, discrimination basis, and GPCM MML identification convention.

Details

Start with plot(fit): it draws a Wright map of person abilities, rater severities, other facet locations, and category thresholds on one logit scale. No plot options are needed for this first view.

This S3 plotting method provides the core fit-family visuals for mfrmr. When type is omitted, it returns the Wright map alone as an mfrm_plot_data object (the most useful single figure for a first inspection). Pass type = "bundle" (or "all" / "default") to obtain the legacy three-plot mfrm_plot_bundle containing a Wright map, pathway map, and category characteristic curves. The compact native default records any omitted facet locations in data$retention and annotates the subtitle and drawn figure; use top_n = Inf to retain every fitted location in the final Wright map. Every retained native location is labelled. LabelX / LabelY provide initial text positions; base graphics further adjusts these positions for the device's text dimensions, avoiding nearby labels and fitted points where space permits. Leader lines connect displaced text to the unchanged point. label_points retains fitted coordinates and initial text positions for custom renderers. Step transitions share one vertical ladder and their labels include the fitted threshold logit. When the fit records boundary-separated facet levels and no display range was supplied, the native and FACETS-style maps use the same robust automatic range and place those levels at ruler ends. Exact fitted values and intervals remain in OriginalEstimate, CI_Lower, and CI_Upper; DisplayEstimate, DisplayCI_Lower, DisplayCI_Upper, and the clipping-status columns describe only the rendered coordinates. Endpoint triangles and the plot footer disclose any omitted or clipped interval. The returned object always carries machine-readable metadata through the mfrm_plot_data contract, even when the plot is drawn immediately. Set show_title = FALSE and show_notes = FALSE for a figure whose title and explanation will be supplied by the surrounding document. The returned data$notes table contains Type and Text columns for interpretation, reference-profile conditions, and display/retention notes where applicable; print() also prints these notes. data$display records the two flags. Original titles, subtitles, coordinates, and readiness metadata are retained. Device-dependent crowding warnings are issued during drawing rather than stored in this draw-free notes table. as_ggplot() respects these flags and retains the notes in attr(plot, "mfrmr_notes").

Fit-family Wright, pathway, and CCC displays use a shared, CUD-informed palette. The first eight series use an Okabe-Ito foundation with bright yellow omitted and darker pink/amber/cyan entries for light backgrounds. Beyond eight series, colours come from the dark half of the viridis HCL palette. Expected-score and category curves also vary line type; Wright locations retain their distinct point shapes, and small data labels use dark neutral text. Six line types cycle for larger series sets, so dense plots still require labels, panels, or more space. This is not a guarantee of perceptual separation for every viewer or device. preset = "monochrome" applies to these series in both base and ggplot renderers. Custom palette values are retained in data$palette and used during ggplot conversion; colour overrides keep the non-colour encodings. See https://jfly.uni-koeln.de/color/ for Color Universal Design guidance.

Every fit-derived payload also carries data$fit_readiness, data$interpretation_status, and data$interpretation_note. Availability and interpretability are separate: when a numerical, data, design, or stability status requires review, the coordinates remain available for diagnosis, but the call warns and marks the returned subtitle and drawn title REVIEW ONLY by default. Hiding that annotation changes presentation only; it does not change the fit's interpretation status or suppress warnings. A prior-regularized extreme MML EAP remains in fit$facets$person. If its source fit is blocked, however, it is omitted from the Wright-map scale so that a finite but non-interpretable trace cannot collapse the display. The exact excluded rows and reason remain in data$person_exclusions, and the omission is stated in data$retention_note.

type = "wright" shows persons, facet levels, and step thresholds on a shared logit scale. Estimates are plotted as fitted, so the sign convention follows the fit: higher person values indicate higher ability, and higher non-person facet values indicate greater severity/difficulty under the default negative facet orientation. Facets listed in fit_mfrm(positive_facets = ...) are reversed (higher values raise expected scores); state the active orientation in figure captions when reporting.

Set renderer = "facets" (equivalently, wright_style = "facets_style") for a line-printer-inspired common ruler. That mode retains every facet location in its data and shows actual (original, when scores were internally recoded) adjacent score transitions. Its facets_style payload contains tidy ruler, person-frequency, facet, step, mean-half-score, header, category-label, and settings tables for custom graphics. RulerValue records the nearest discrete ruler row for line-printer reconstruction, whereas step and midpoint lines are drawn at their exact fitted DrawValue and step labels print that logit value. The styling emulates the semantics of FACETS Table 6; estimates and standard errors remain those produced by mfrmr. Use show_ci = FALSE for the closest FACETS-style rendering. If show_ci = TRUE is requested, interpret the result as a hybrid that adds mfrmr uncertainty intervals to FACETS-style ruler grammar. Column headings are retained even on narrow devices. If headings or person frequency stars need more space, drawing warns; use a wider device or increase persons_per_star for a more compact frequency column.

type = "pathway" shows expected score traces and dominant-category regions across theta. This expected-score display is distinct from the Bond-and-Fox-style fit-versus-measure pathway: use type = "fit_pathway" for Infit/Outfit on the horizontal axis and measure logits on the vertical axis. Its draw-free plot data include person-selection settings, CI columns, and explicit SE-source metadata. The expected-score pathway draw-free data also includes pathway_long, pathway_annotations, fit_measures, fit_status, and curve_fit_status, so R users can rebuild the pathway map in ggplot2, plotly, or a report pipeline while keeping the same underfit/overfit labels used by fit_measures_table(). type = "ccc" shows category response probabilities. Multiple curve groups are faceted rather than overplotted by the native renderer, and category-specific legends use the same colours across panels. Multiple groups or more than five categories use one legend beside the plotting area; colour presets use distinct default colours beyond eight categories. For GPCM, these curves retain the estimated slope. With separate owners, each step-level/slope-level pair is a labeled curve group. Such joint profiles have no single-facet Infit/Outfit flag; inspect fit_measures or type = "fit_pathway" separately. All curve families are reference-profile curves with additive facet main effects and fitted interactions fixed at zero; the native footer and ggplot subtitle disclose that conditioning. Expected-score pathways use the same reference profile and expose the same curve_basis table. These curves do not average over the observed rater assignments or show a particular fitted interaction cell. The draw-free curve_basis, CurveBasis, and PredictorOffset fields make that conditioning explicit. type = "ccc_surface" or type = "category_surface" returns 3D-ready category-probability surface data for external rendering; it deliberately does not add a plotly/rgl dependency or replace the 2D CCC/pathway reporting figures. The returned object includes category_support, interpretation_guide, and reporting_policy tables so retained zero-frequency categories and manuscript-use boundaries remain visible to beginners. The remaining types ("facet", "person", "step", "shrinkage") provide compact location-specific displays.

Corrected JML plots

A fit with an explicit jml_correction_order uses type = "slopes" (default), "locations" or "steps". Locations show one facet, defaulting to the first declared facet. style = "points" shows estimates without intervals; "distribution" shows their empirical cumulative distribution. These displays do not classify rater quality. They support title, caption, show_title, show_notes, show_labels, sort, palette, preset, text_scale, point_size, and draw-free as_ggplot() conversion. Slopes use a reference of one; location/step displays use zero. Ordinary plot types, show_ci = TRUE, and unrelated plot controls are rejected for this estimator. The figure retains point estimates if their RootSE is unavailable; it cannot be drawn if no unambiguous point solution was obtained.

Graphics layout

Single-panel plots advance through a caller's par(mfrow = ...) or layout() arrangement and restore the style and margins they change. Native Wright maps, multi-group CCC plots, and faceted fit pathways create their own page layouts; call these outside a custom layout() arrangement. Use renderer = "facets" for a single-panel Wright map in a custom grid. A 7 by 5 inch device is a useful starting size for standalone plots; dense PCM labels benefit from a wider device. Native Wright/pathway plots warn when labels cannot be separated within the available space. Enlarge the device (for example, to 12 by 8 inches) and inspect the result; this warning concerns readability, not model fit. Abbreviated labels retain distinguishing text where possible, falling back to full names if needed. Original names remain available in the plot data. For non-Latin labels, select a graphics device and font that support the characters before plotting; the package retains the caller's font family.

Typical workflow

1. Fit a model with fit_mfrm().

2. Use plot(fit) to inspect the Wright map at a glance.

3. Switch to type = "pathway", "fit_pathway", "ccc", or "shrinkage" for the relevant follow-up figure, or type = "bundle" for the three-plot overview when preparing a FACETS-style summary.

Further guidance

For a plot-selection guide and extended examples, see mfrmr_visual_diagnostics and vignette("mfrmr-visual-diagnostics", package = "mfrmr").

Session plot defaults

Set options(mfrmr.plot_preset = "publication") to choose a session default for plotting functions that expose the common preset argument. The supported values are "standard", "publication", "compact" and "monochrome". Precedence is an explicit call argument, then the session option, then "standard". For example, preset = "standard" overrides a session set to "monochrome". Explicit preset = NULL retains the earlier package-default behavior; it does not read the session option. Invalid session values cause an error only when that option is needed.

The category-curve, data-quality, fit-review, connectivity and network routes of plot() for report bundles use the same option through .... Plots without a common preset argument, including extended-model plots with their own palette controls, keep their own settings. This option selects a preset, not a universal theme or a guarantee that all renderers implement every appearance control identically.

New plot payloads retain the resolved preset for supported saved-data rendering. Converting an existing payload with as_ggplot() uses its saved appearance, even after the session option changes. A call that creates a new plot from a fit or statistical result uses the current default. For a reproducible script, supply preset explicitly or set the option in that script. Saving only the fitted model does not save a session option. No global ggplot theme is changed.

Restore previous settings with old <- options(mfrmr.plot_preset = "monochrome") followed by options(old). Use options(mfrmr.plot_preset = NULL) to remove the option. The preset changes appearance, not estimates, confidence levels or diagnostic thresholds.

See also

fit_mfrm(), plot_wright_unified(), plot_bubble(), mfrmr_visual_diagnostics

Examples

# \donttest{
# Load the package and example ratings
library(mfrmr)
toy <- load_mfrmr_data("example_operational")

# Fit the model
fit <- fit_mfrm(
  data = toy,
  person = "Person",
  facets = c("Rater", "Criterion"),
  score = "Score",
  method = "MML",
  model = "RSM"
)

# Run each plot command separately to inspect its figure

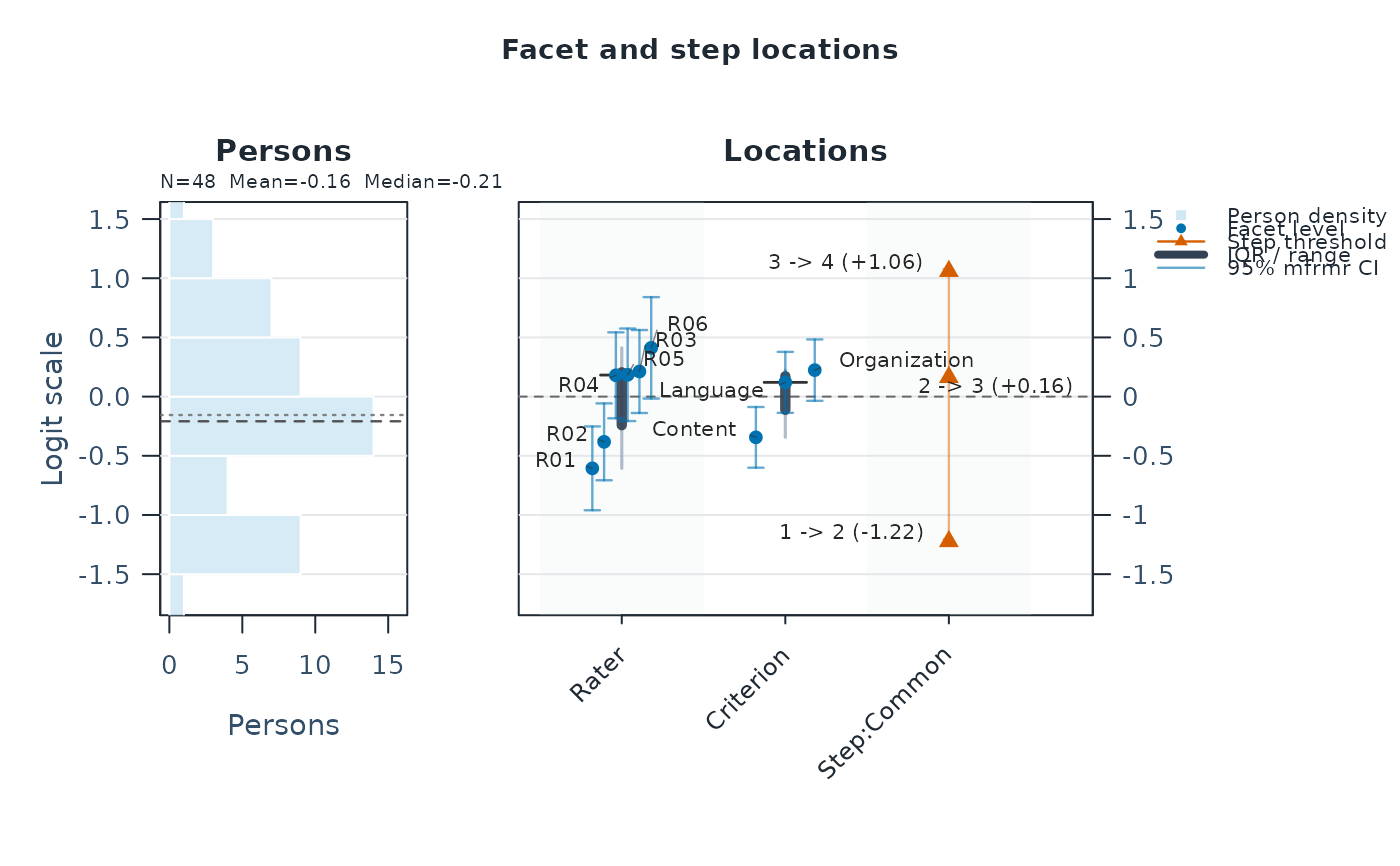

plot(fit) # Wright map: persons, facets, and category thresholds

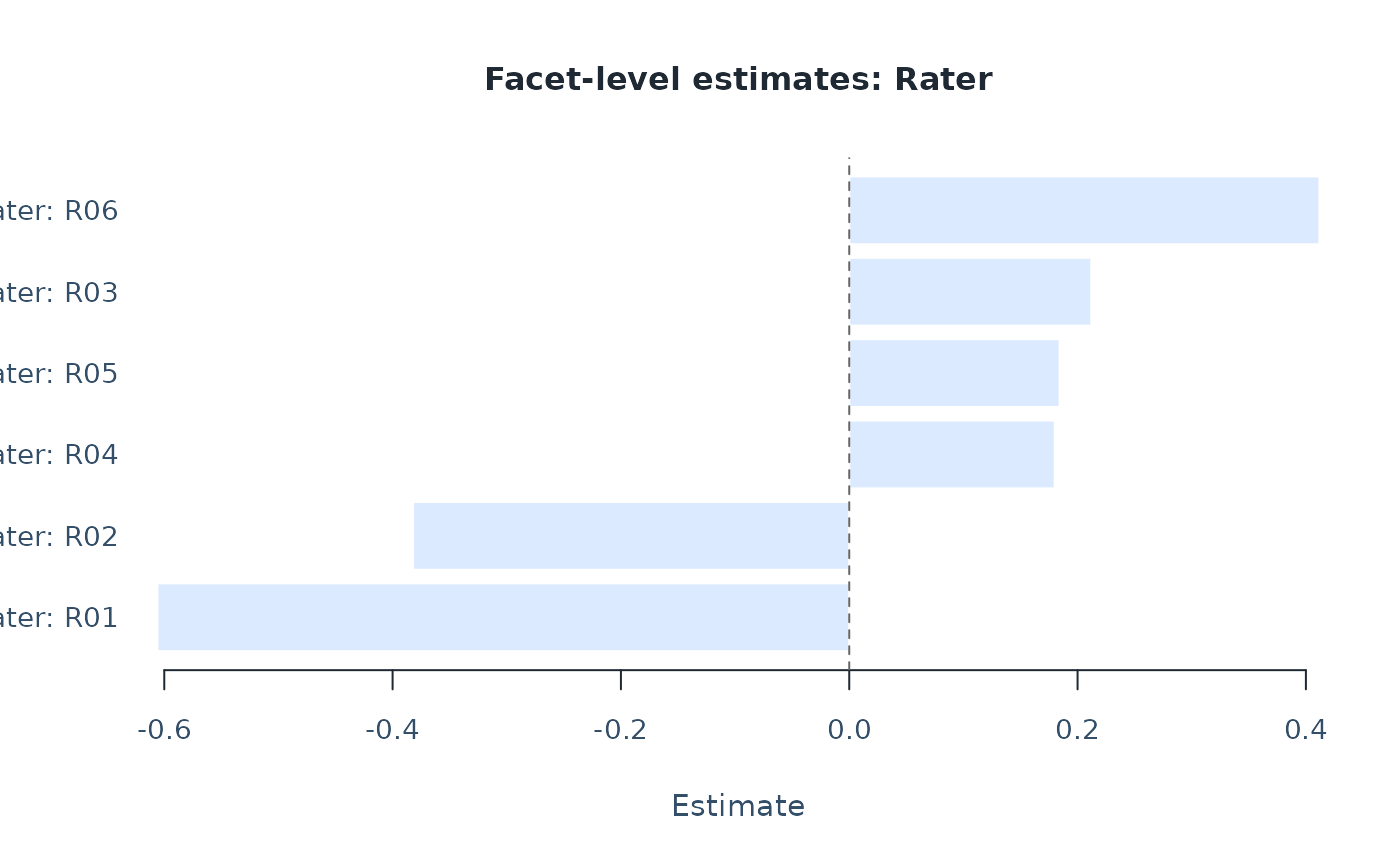

# Rater severity estimates (higher means stricter in this example)
plot(fit, type = "facet", facet = "Rater")

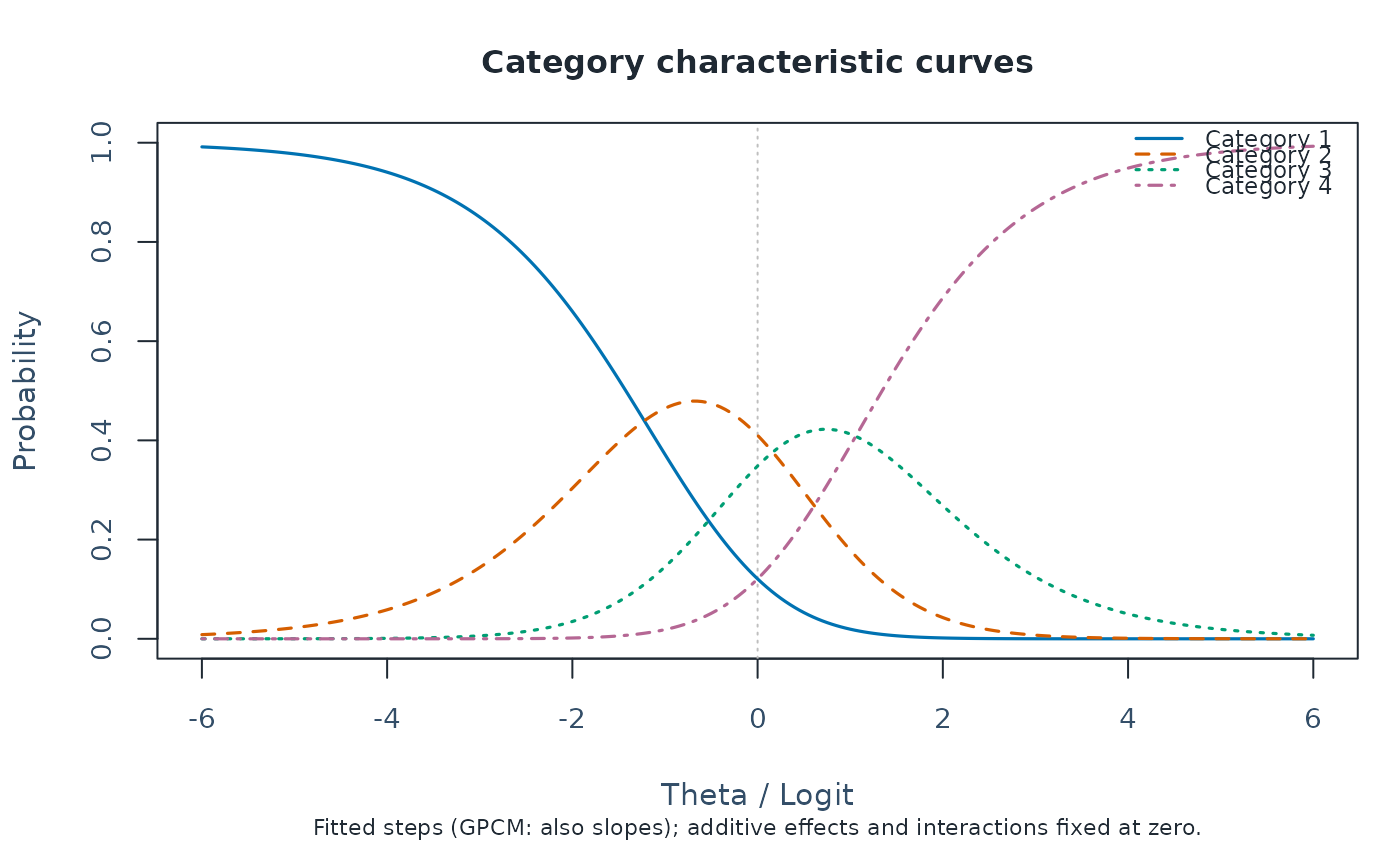

# Probability of each score category across the ability scale
plot(fit, type = "ccc")


# Optional: get plot data instead of drawing a figure
wright <- plot(fit, draw = FALSE)
head(wright$data$locations)
#> # A tibble: 6 × 38
#>   Group Label PlotType    Estimate    SE Fixed CI_Level SE_Method  PrecisionTier
#>   <fct> <chr> <chr>          <dbl> <dbl> <lgl>    <dbl> <chr>      <chr>
#> 1 Rater R01   Facet level   -0.606 0.181 FALSE     0.95 Observati… exploratory
#> 2 Rater R02   Facet level   -0.382 0.166 FALSE     0.95 Observati… exploratory
#> 3 Rater R04   Facet level    0.180 0.185 FALSE     0.95 Observati… exploratory
#> 4 Rater R05   Facet level    0.184 0.199 FALSE     0.95 Observati… exploratory
#> 5 Rater R03   Facet level    0.212 0.179 FALSE     0.95 Observati… exploratory
#> 6 Rater R06   Facet level    0.412 0.219 FALSE     0.95 Observati… exploratory
#> # ℹ 29 more variables: SupportsFormalInference <lgl>, SEUse <chr>,
#> #   CIBasis <chr>, CIUse <chr>, CIEligible <lgl>, CILabel <chr>,
#> #   Measure_Source <chr>, CI_Lower <dbl>, CI_Upper <dbl>, Step <chr>,
#> #   StepIndex <int>, BoundarySeparated <lgl>, XBase <dbl>, X <dbl>,
#> #   OriginalEstimate <dbl>, BelowRange <lgl>, AboveRange <lgl>,
#> #   DisplayEstimate <dbl>, DisplayLabel <chr>, OriginalCI_Lower <dbl>,
#> #   OriginalCI_Upper <dbl>, DisplayCI_Lower <dbl>, DisplayCI_Upper <dbl>, …
# }
