Plot strict pairwise local-dependence follow-up using base R

Usage

plot_marginal_pairwise(
  x,
  diagnostics = NULL,
  metric = c("exact", "adjacent"),
  top_n = 20,
  facet = NULL,
  main = NULL,
  palette = NULL,
  label_angle = 45,
  preset = c("standard", "publication", "compact", "monochrome"),
  draw = TRUE,
  title = NULL
)

Arguments

x: Output from fit_mfrm() or diagnose_mfrm().
diagnostics: Optional output from diagnose_mfrm() when x is mfrm_fit.
metric: "exact" or "adjacent".
top_n: Maximum level pairs shown.
facet: Optional facet name used to keep only matching pairwise rows.
main: Compatibility title argument. Omitted or NULL keeps the default title. Existing calls remain supported without a deprecation warning. For new code, prefer title; do not supply both arguments.
palette: Optional named color overrides. Recognized names: ok, flag.
label_angle: X-axis label angle.
preset: Visual preset ("standard", "publication", "compact", or "monochrome").
draw: If TRUE, draw with base graphics.
title: Plot title. Omit it to keep the default, supply one character string to replace it, or use NULL (or "") to suppress it. This changes only the heading; numerical results, reference lines, subtitles and interpretation notes remain. Both main and title explicitly supplied is an error, even if equal or NULL. Positional legacy arguments retain their order; use the exact name title.

Value

A plotting-data object of class mfrm_plot_data.

Details

This helper visualizes the strict pairwise local-dependence follow-up derived from posterior-integrated expected exact and adjacent agreement.

The "exact" view ranks level pairs by the absolute exact-agreement standardized residual. The "adjacent" view uses the adjacent-agreement standardized residual instead. Both are exploratory corroboration screens for strict marginal-fit flags. Selection uses all pairs within the requested facet, not a preselected list for the other metric. retention counts available/unavailable metric values, while full_table retains all candidates. Grey bars/labels indicate unavailable values or classifications.

Interpreting output

Positive bars mean the observed agreement exceeded the posterior-expected agreement for that level pair.
Negative bars mean the observed agreement fell below the posterior-expected agreement.
Red bars indicate an available standardized-residual or agreement-gap rule was crossed. A missing companion rule does not cancel a known crossing. These are descriptive cutoffs without calibrated error rates.

Typical workflow

Fit with fit_mfrm() using method = "MML" for RSM / PCM.
Run diagnose_mfrm() with diagnostic_mode = "both".
Use plot_marginal_pairwise() to inspect level pairs behind pairwise local-dependence flags.
Corroborate with legacy diagnostics, design review, and substantive interpretation before making claims.

Further guidance

For a plot-selection guide and a longer walkthrough, see mfrmr_visual_diagnostics and vignette("mfrmr-visual-diagnostics", package = "mfrmr").

Session plot defaults

Set options(mfrmr.plot_preset = "publication") to choose a session default for plotting functions that expose the common preset argument. The supported values are "standard", "publication", "compact" and "monochrome". Precedence is an explicit call argument, then the session option, then "standard". For example, preset = "standard" overrides a session set to "monochrome". Explicit preset = NULL retains the earlier package-default behavior; it does not read the session option. Invalid session values cause an error only when that option is needed.

The category-curve, data-quality, fit-review, connectivity and network routes of plot() for report bundles use the same option through .... Plots without a common preset argument, including extended-model plots with their own palette controls, keep their own settings. This option selects a preset, not a universal theme or a guarantee that all renderers implement every appearance control identically.

New plot payloads retain the resolved preset for supported saved-data rendering. Converting an existing payload with as_ggplot() uses its saved appearance, even after the session option changes. A call that creates a new plot from a fit or statistical result uses the current default. For a reproducible script, supply preset explicitly or set the option in that script. Saving only the fitted model does not save a session option. No global ggplot theme is changed.

Restore previous settings with old <- options(mfrmr.plot_preset = "monochrome") followed by options(old). Use options(mfrmr.plot_preset = NULL) to remove the option. The preset changes appearance, not estimates, confidence levels or diagnostic thresholds.

Examples

# \donttest{
# Load the package and example ratings
library(mfrmr)
toy <- load_mfrmr_data("example_operational")

# Fit the model
fit <- fit_mfrm(
  data = toy,
  person = "Person",
  facets = c("Rater", "Criterion"),
  score = "Score",
  method = "MML",
  model = "RSM"
)

# Compute diagnostics once for the following checks
diagnostics <- diagnose_mfrm(fit)

# Which pairs show more or less exact agreement than the model expects?

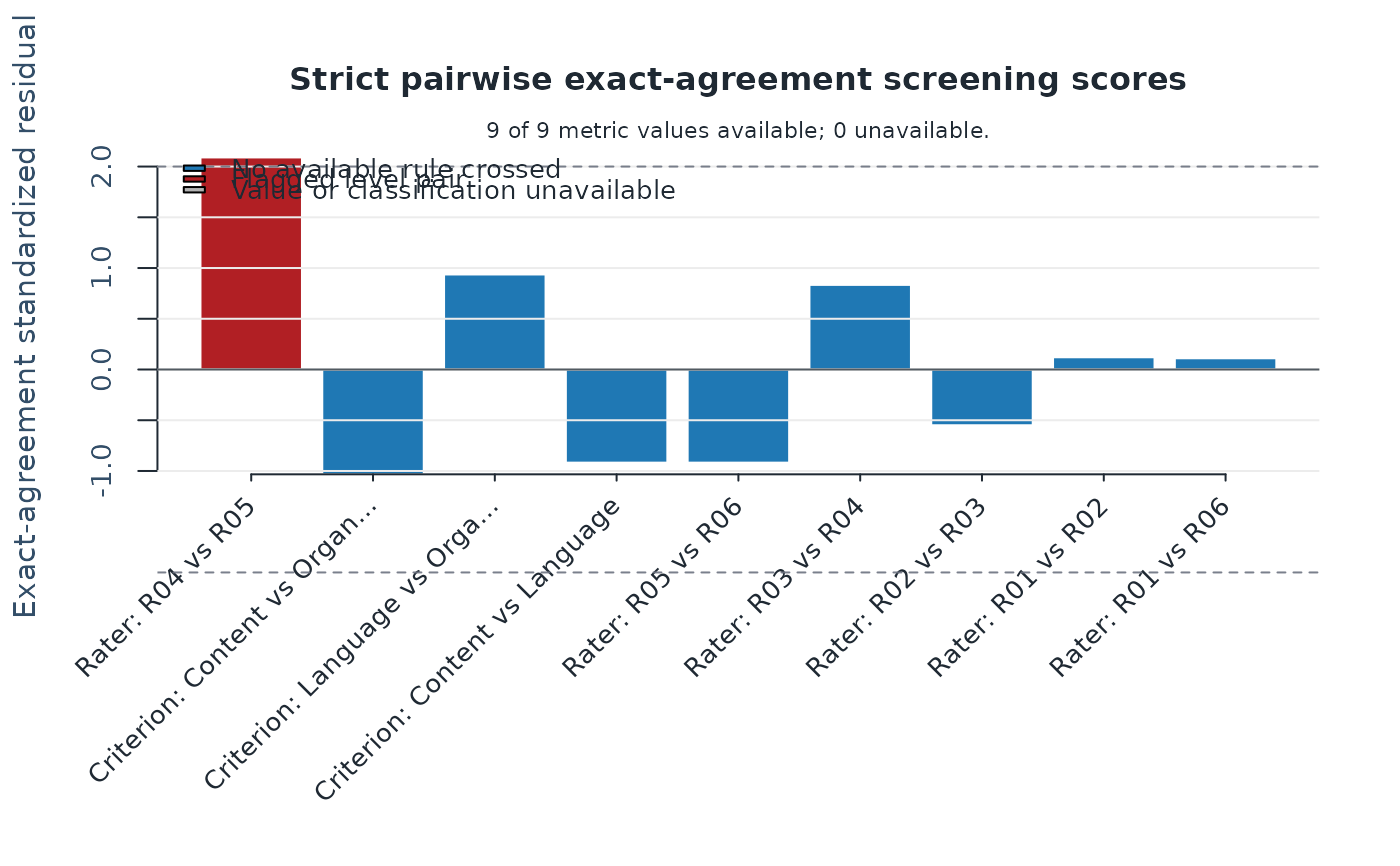

plot_marginal_pairwise(diagnostics)

# These are screening results; inspect the rating design before drawing conclusions

# Optional: agreement within one score category

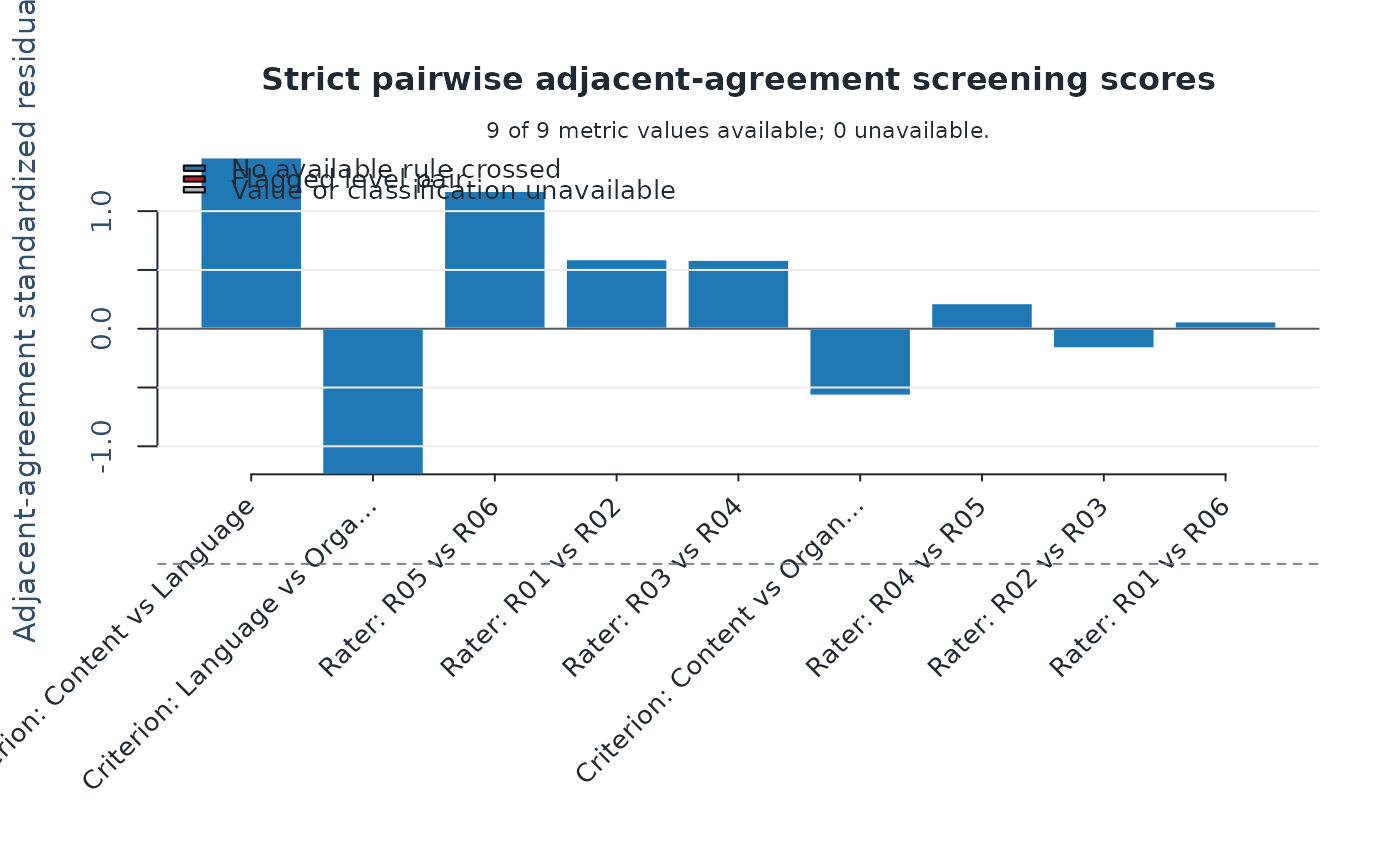

plot_marginal_pairwise(diagnostics, metric = "adjacent")

# }
