Estimate rater severity when the raters are modeled as draws from a specified population. Each rater has one effect shared across everyone they rate. The rating-scale model (RSM) uses approximate marginal maximum likelihood, with optional additive fixed facets. For a local effect within one person's performance instead, see fit_mfrm_testlet().

Usage

fit_mfrm_random_rater(
  data,
  person,
  rater,
  score,
  facets = character(),
  score_levels,
  rater_sd = NULL,
  quad_points = 31L,
  maxit = 300L,
  missing = c("fail", "omit"),
  person_sd = NULL,
  person_variance_max = 16
)

# S3 method for class 'mfrm_random_rater'
summary(object, ..., calibration_intervals = c("none", "normal"), level = 0.95)

# S3 method for class 'mfrm_random_rater'
print(x, ...)

Arguments

data

Long-format data, one row per observed or assigned rating.

person, rater, score

Names of the person, rater and numeric score columns.

facets

Character vector of fixed-facet columns; default none. Include task or criterion columns explicitly when their difficulties are part of the intended model; their presence in data alone does not include them.

score_levels

Required consecutive integer score categories, in order.

rater_sd

NULL estimates the population SD of rater severity. A nonnegative number fixes it as known; zero removes rater heterogeneity.

quad_points

Number of standard-normal Gauss-Hermite points for each person integral, from 7 to 241; default 31. The result is also evaluated at 2 * quad_points + 1 points to check this integral's numerical stability. This check does not assess the separate rater Laplace approximation. If checks$PersonQuadratureStable is false, refit with more points and recheck all of checks; a higher-order evaluation alone does not refit the calibration. No allowed order is universally sufficient.

maxit

Maximum optimizer iterations per start; default 300.

missing

"fail" (default) refuses missing assigned scores; "omit" explicitly analyzes observed scores and records omitted rows.

person_sd

NULL (default) estimates the normal ability SD. A finite positive number fixes it as known; person_sd = 1 retains the standard normal population. This is a population restriction with Rasch slope one.

person_variance_max

Positive upper search bound for estimated ability variance; default 16. Reaching it fails numerical readiness; increase the bound and refit rather than interpreting a capped estimate as a solution.

...

Unused by summary and print.

calibration_intervals

For summaries, "none" (default) omits calibration bounds; "normal" explicitly requests their pointwise normal approximation. This does not select individual-rater intervals.

level

Nominal level for explicitly requested summary calibration intervals; default 0.95. Numerical and variance-boundary restrictions remain.

x, object

A fitted mfrm_random_rater object.

Value

An mfrm_random_rater object with calibration_table, raters, full covariance matrices, checks, analysis data/omitted-row accounting, model settings and optimizer records. It contains no native pointers; save it with saveRDS(). Its summary, plot and prediction methods are specific to this model; it is not an ordinary mfrm_fit or portable fixed-facet calibration object. Calibration and summary rater tables retain IntervalStatus, CIEligible and InferenceReview for normal-interval availability. These distinguish unrequested bounds, unsupported targets and unresolved checks or variance boundaries; see confint.mfrm_random_rater(). Retained points require the separate fit checks and are not certified by these fields.

Details

The adjacent-category logit is $$\log\{P(Y_{prj}=k)/P(Y_{prj}=k-1)\} = \theta_p-u_r-x_{prj}'\beta-\delta_k.$$ Persons are independent \(N(0,\sigma_p^2)\) and raters independent \(N(0,\sigma_r^2)\), independent of persons and assignment. Fixed-facet level effects sum to zero. Steps are unconstrained adjacent thresholds; they need not be ordered or sum to zero. Their mean sets the overall location. Rater effects are not centered within the observed sample.

This is a frequentist likelihood fit, with no priors on calibration or variance parameters. Person effects are integrated by quadrature conditional on all shared rater effects; the resulting joint rater integral uses the Laplace approximation through the optional RTMB package. Integrating a new rater separately for each person would fit a different model. After marginalization, Persons sharing a rater are dependent. Adding Persons rated by the same fixed panel does not add independent draws from the rater population. Even if those rater effects became known exactly, a fixed number of draws would not consistently estimate a positive population variance. Person count or total rating count alone therefore cannot justify ordinary large-sample population-SD inference. The full calibration information includes all estimated population SDs, but this does not establish the required asymptotic regime or Laplace accuracy.

The initial scope is RSM, unit weights, a connected person-rater design, multiple persons per rater, and full-rank additive fixed-facet coding. Every declared category must occur. Nonassigned combinations are absent; omitted scores are not imputed. Informative assignment, nonnormal rater populations, PCM, anchors, interactions, testlets and latent regression are not implemented by this route. Connectedness alone does not guarantee adequate information about rater variance. A fixed-facet level with only minimum or only maximum scores has no finite calibration estimate. Such separation fails checks$NumericalReady and checks$InformationPositive, even if the optimizer reports convergence. checks$FixedFacetSeparation records this sufficient separation check; its absence does not exclude separation along combinations of facets.

Both estimated zero variances are considered explicitly. One-sided variance scores check these boundaries; the derivative with respect to SD alone cannot establish them. The ability-variance score uses checked one-sided differences of the complete approximate marginal likelihood, including the rater Laplace determinant. At either estimated boundary, regular calibration and rater intervals are withheld. A fixed zero SD is a known submodel, not a fitted model with arbitrary fixed rater severities.

Fixed-facet and step tables retain estimates and approximate SEs but omit bounds by default. confint(fit, parm = "calibration", level = 0.95) or summary(fit, calibration_intervals = "normal", level = 0.95) explicitly requests observed-information normal approximations at an interior fit. Their finite-sample coverage is not established. Rebuilding summaries or mfrm_results() from an older saved fit applies this policy without refitting or changing the saved fit. Population-SD intervals are requested separately with confint(fit, parm = "rater_sd"); no ability-SD interval is supplied. This avoids a Wald interval that excludes zero by construction. Rater estimates are conditional modes. Their ConditionalSD holds calibration fixed; PredictionSE adds first-order calibration uncertainty through RTMB's generalized delta method. Individual rater interval bounds are missing by default: nominal coverage is not established. confint(fit, parm = "raters") explicitly requests the normal approximation from saved estimates without refitting; plot(fit, intervals = "normal") displays it. These target realized random effects, not fixed-rater coefficients, and do not classify or exclude raters. This output restriction does not correct interval coverage.

With estimated ability SD, a four-condition study (200 datasets per condition) found conditional individual-rater coverage of 91.6–91.8% with six raters and 94.0–94.1% with 24 raters; finite-interval availability was 99% and 87–88%, respectively. None met the prespecified combined coverage and availability criterion. Six-rater Monte Carlo uncertainty also prevented a conclusive material-undercoverage decision in this study. An earlier known-ability-SD pilot found 84.2% six-rater coverage. See vignette("mfrmr-random-raters") for designs and Monte Carlo intervals. These studies do not establish a safe minimum rater count. Numerical checks do not certify statistical validity or shared-rater Laplace accuracy.

Numerical evidence

An independent comparison evaluated local marginal-likelihood changes at eight saved calibrations for three-category RSMs with 240 Persons, six or 24 raters, and rotating or weakly linked assignments. Displacements spanned all six calibration coordinates and named contrast/SD directions, scaled to one local information unit. All 144 planned comparisons (128 distinct parameter points) met a 0.05-log-likelihood-unit tolerance including Monte Carlo uncertainty. The largest difference was 0.005 log-likelihood units. The reference reused joint posterior samples with an exact change-of-variables identity; the package likelihood and estimator were unchanged.

This supports the tested local likelihood changes, not an exact maximum- likelihood solution, an absolute likelihood normalization, the entire SD profile, variance boundaries or repeated-sampling interval coverage. Person quadrature checks remain distinct from this comparison. See vignette("mfrmr-random-raters") for the reference-precision limits and scope.

A shared rater effect represents differences in usual severity across raters, not inconsistency within a rater or differential severity toward a subgroup. Van den Noortgate et al. (2003, equation 7) describe crossed normal effects for binary responses. The binary case here has that sharing structure, with the rater sign reversed and unit Rasch slope. Huang and Cai (2024) extend crossed effects to item-level ordinal responses, using cumulative graded-response probabilities and estimated slopes. Their model and estimator are not this adjacent-category RSM and Laplace fit.

Fixing ability variance at one while keeping the Rasch slope at one is a population restriction, not merely a change of units. The default estimates this variance, keeping the ability mean zero and step location free. It does not fit group-specific distributions or latent regression. Unequal ability populations across rater panels can violate its assumptions even when the assignment is connected. A successful numerical check cannot assess those population assumptions. Earlier saved fits without ability-population parameters retain their original known N(0,1) meaning for predictions, profiles and bootstrap refits.

Relation to testlets and discrimination

A shared severity effect is not a random discrimination parameter. This RSM does not estimate GPCM slopes. Its rater effect spans persons, whereas fit_mfrm_testlet() uses a distinct effect for each Person/block pair, even when the block is named Rater. These sharing structures lead to different marginal likelihoods and prediction targets; the two routes cannot currently be combined. See gpcm_capability_matrix() for the relationship to fixed slope families and local independence.

Comparison with fixed-rater MFRM

Compare the same observed rating events, categories, fixed facets and ability population. Fixed rater effects describe the observed panel; random effects refer to a population and are shrunk toward its mean. Their raw locations need not share an origin. Compare aligned rater contrasts or predictions at the same ability and facet settings. Setting rater_sd = 0 removes all rater differences; it does not recover a model with freely estimated fixed rater effects. Shared raters induce dependence across Persons after marginalization, so a Person-count BIC or ordinary chi-squared likelihood-ratio test must not be copied from the fixed-facet model. compare_mfrm() checks matched events and compares centered facet summaries, retaining each model's assumptions and readiness. It does not rank models or calculate intervals for their differences.

References

Van den Noortgate, W., De Boeck, P. and Meulders, M. (2003). Cross-classification multilevel logistic models in psychometrics. Journal of Educational and Behavioral Statistics, 28, 369–386. doi:10.3102/10769986028004369 .

Huang, S. and Cai, L. (2024). Cross-classified item response theory modeling with an application to student evaluation of teaching. Journal of Educational and Behavioral Statistics, 49, 311–341. doi:10.3102/10769986231193351 .

Kristensen, K., Nielsen, A., Berg, C. W., Skaug, H. and Bell, B. M. (2016). TMB: Automatic differentiation and Laplace approximation. Journal of Statistical Software, 70(5), 1–21. doi:10.18637/jss.v070.i05 .

Examples

# Inspecting this saved synthetic fit does not require RTMB.
example <- readRDS(system.file("examples", "extended-models.rds", package = "mfrmr"))
fit <- example$random_rater$fit
# To refit instead, install optional RTMB >= 2.0 and run:
# ratings <- load_mfrmr_data("example_core")
# fit <- fit_mfrm_random_rater(ratings, "Person", "Rater", "Score",
#   facets = "Criterion", score_levels = 1:4, quad_points = 121)
summary(fit)
#> $calibration
#>       Parameter     Facet             Level    Estimate         SE Lower Upper
#> 1   Fixed facet Criterion          Accuracy  0.23147642 0.08215730    NA    NA
#> 2   Fixed facet Criterion           Content -0.38637722 0.08391967    NA    NA
#> 3   Fixed facet Criterion          Language  0.09062358 0.08137271    NA    NA
#> 4   Fixed facet Criterion      Organization  0.06427722 0.08130389    NA    NA
#> 5          Step     Score                 2 -1.20199830 0.23041987    NA    NA
#> 6          Step     Score                 3 -0.05327141 0.21307110    NA    NA
#> 7          Step     Score                 4  1.26465868 0.23030176    NA    NA
#> 8 Population SD     Rater  Rater population  0.25403161 0.10660909    NA    NA
#> 9 Population SD    Person Person population  0.96867912 0.12319493    NA    NA
#>       IntervalStatus CIEligible
#> 1      not_requested      FALSE
#> 2      not_requested      FALSE
#> 3      not_requested      FALSE
#> 4      not_requested      FALSE
#> 5      not_requested      FALSE
#> 6      not_requested      FALSE
#> 7      not_requested      FALSE
#> 8 unsupported_target      FALSE
#> 9 unsupported_target      FALSE
#>                                                                                                                                   InferenceReview
#> 1                                         Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 2                                         Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 3                                         Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 4                                         Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 5                                         Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 6                                         Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 7                                         Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 8 This normal-interval route does not support population SDs or variances. A retained point or SE does not authorize a regular variance interval.
#> 9 This normal-interval route does not support population SDs or variances. A retained point or SE does not authorize a regular variance interval.
#>
#> $raters
#>   Rater Persons   Estimate ConditionalSD PredictionSE Lower Upper
#> 1   R01      48 -0.1603836     0.1228651    0.1492867    NA    NA
#> 2   R02      48 -0.2692240     0.1230288    0.1514160    NA    NA
#> 3   R03      48  0.1566218     0.1228254    0.1492172    NA    NA
#> 4   R04      48  0.2730197     0.1229746    0.1514764    NA    NA
#>   IntervalStatus CIEligible
#> 1  not_requested      FALSE
#> 2  not_requested      FALSE
#> 3  not_requested      FALSE
#> 4  not_requested      FALSE
#>                                                                                           InferenceReview
#> 1 Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 2 Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 3 Normal intervals were not requested. Use the documented confint() target to request this approximation.
#> 4 Normal intervals were not requested. Use the documented confint() target to request this approximation.
#>
#> $checks
#>   OptimizerCode  MaxGradient ZeroVarianceScore EstimatedVarianceBoundary
#> 1             0 3.494416e-05          1463.155                     FALSE
#>   HigherOrderZeroVarianceScore EstimatedPersonVarianceBoundary
#> 1                     1463.155                           FALSE
#>   PersonVarianceUpperBoundary PersonZeroVarianceScore PersonZeroScoreDifference
#> 1                       FALSE                1954.208               0.001859842
#>   HigherOrderPersonZeroVarianceScore HigherOrderPersonZeroScoreDifference
#> 1                           1954.208                          0.001859848
#>   QuadraturePoints CheckPoints LogLikDifference GradientDifference
#> 1              121         243      5.89398e-09       1.949798e-07
#>   NumericalReady InformationPositive
#> 1           TRUE                TRUE
#>
#> $calibration_intervals
#> $calibration_intervals$method
#> [1] "none"
#>
#> $calibration_intervals$level
#> [1] 0.95
#>
#>
#> $settings
#> $settings$method
#> [1] "MML: Person quadrature and shared-rater Laplace"
#>
#> $settings$model
#> [1] "RSM"
#>
#> $settings$person_distribution
#> [1] "N(0, person_sd^2)"
#>
#> $settings$rater_distribution
#> [1] "N(0, rater_sd^2)"
#>
#> $settings$fixed_rater_sd
#> NULL
#>
#> $settings$fixed_person_sd
#> NULL
#>
#> $settings$person_variance_max
#> [1] 16
#>
#> $settings$quad_points
#> [1] 121
#>
#> $settings$maxit
#> [1] 300
#>
#> $settings$missing
#> [1] "fail"
#>
#> $settings$RTMB_version
#> [1] "2.0"
#>
#>
#> $data_usage
#>    Input Analyzed  Omitted
#>      768      768        0
#>
#> $notes
#> [1] "Calibration bounds are omitted by default; SEs are observed-information approximations. Request calibration_intervals = 'normal' explicitly to inspect pointwise bounds."
#> [2] "Individual-rater intervals are not supplied automatically: nominal coverage is not established. PredictionSE is a first-order approximation. Use confint(object, parm = 'raters') only to inspect that normal approximation."
#> [3] "Person quadrature checks do not assess the shared-rater Laplace error."
#>
plot(fit)

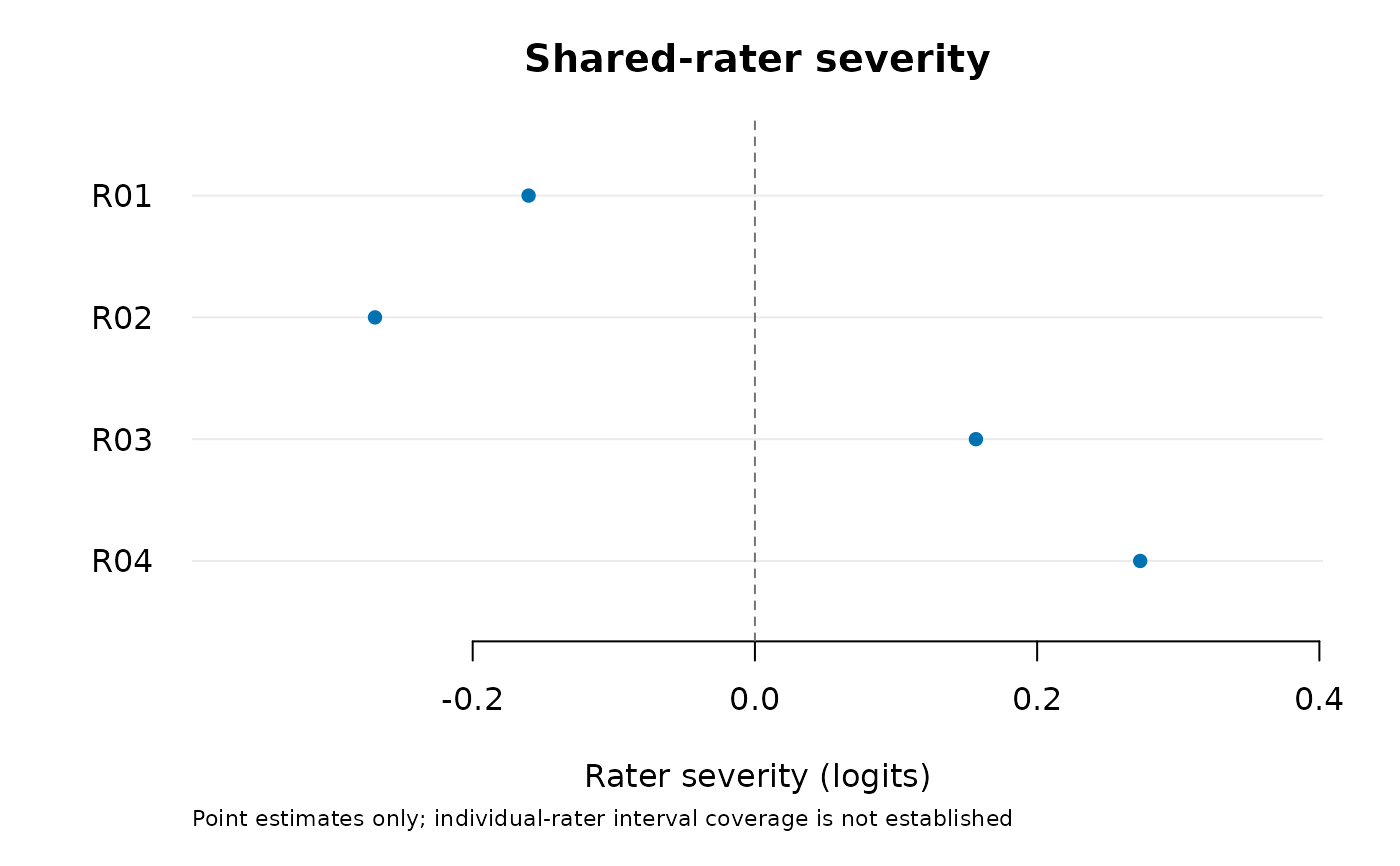

Conditional-mode severity estimates for four observed raters under the shared random-rater model. R02 is lowest and R04 highest; positive values indicate stricter ratings. No intervals or quality flags are shown.
system.file("examples", "extended-models.R", package = "mfrmr")
#> [1] "/home/runner/work/_temp/Library/mfrmr/examples/extended-models.R"
