Pointwise intervals for fixed facet estimates and contrasts

Describe uncertainty about a fixed facet estimate, such as rater severity, or a specified difference between two raters. Start from a supported fitted model; the point estimates stay the same when you change the interval method.

Usage

mfrm_facet_intervals(
  fit,
  facet,
  contrasts = NULL,
  method = c("model", "sandwich"),
  clusters = NULL,
  adjust = FALSE,
  level = 0.95
)

# S3 method for class 'mfrm_facet_intervals'
print(x, ...)

# S3 method for class 'mfrm_facet_intervals'
summary(object, ...)

Arguments

fit: An inference-ready RSM/PCM MML fit from fit_mfrm(), using a fixed standard-normal person distribution, fixed quadrature and unit observation weights. Experimental two-family GPCM MML also supports method = "model" with fixed-grid EM or direct adaptive integration; see "Two-family location targets" below. Experimental direct MML native locations additionally support estimated intercept-only normal RSM/PCM and one-family GPCM with fixed N(0,1) or an estimated intercept-only normal population, using fixed or adaptive integration; see "Native locations" below for their scope and separate numerical checks.
facet: A non-person facet, for example "Rater".
contrasts: Optional numeric matrix with distinct target row names and columns named by every level of facet. Columns are aligned by name. A row with coefficients c(1, -1, 0) estimates the first level minus the second. By default, each level is reported.
method: "model" (default) uses ordinary observed information; "sandwich" uses independent-cluster marginal-likelihood scores. The experimental native-location and two-family extensions support only "model"; sandwich support remains limited to the ordinary fixed-population RSM/PCM route.
clusters: For sandwich inference, an optional data frame with exactly one row per fitted person and complete Person and Cluster identifiers. Without it, persons are the independent units. A larger cluster could be a school or clinic if different schools or clinics are independent. A person cannot be split across clusters. Supply original person labels, even when the input person column has another name.
adjust: Logical; with method = "sandwich", optionally multiply the covariance by G/(G-1), where G is the cluster count. Default FALSE. This scaling does not guarantee small-sample coverage.
level: Pointwise confidence level, strictly between zero and one.
x, object: An object returned by mfrm_facet_intervals().
...: Unused by print and summary methods.

Value

An mfrm_facet_intervals object with table, selected target covariance, model_covariance, free-parameter parameter_covariance, model_parameter_covariance, person_scores, cluster_scores, the clusters mapping, exact contrasts, settings, and source fit. The model-based SE and interval remain alongside the selected method. Score rows are derivatives of a person's marginal log likelihood, not observed category scores or ability estimates. Scores are absent for method = "model". When weak information passes numerical refinement, cautions and information_review retain the warning and checks. InferenceCaution also accompanies the interval table when applicable. Two-family results additionally retain checks, numerical_checks, score_rank, source identity, scale references and interval refusal reasons. Their table includes CIEligible; failed numerical checks leave bounds and SEs missing while preserving the fitted point estimates. Native-location results retain checks, numerical comparisons, full and target covariance, target Jacobian and source identity, without an empirical Person-score rank requirement.

Details

Compare ordinary observed-information intervals with a sandwich covariance that treats a person's complete response vector, or an explicitly declared larger cluster, as the independent sampling unit. Estimates are not refitted.

For cluster score s_g and observed negative-log-likelihood Hessian H, the unadjusted sandwich is solve(H) %*% sum_g(s_g %*% t(s_g)) %*% solve(H). Scores aggregate all responses of a person before forming the outer products; grouping individual rating rows would be a different and incorrect calculation for this marginal likelihood. The full covariance is transformed through the fitted constraints and requested contrasts. Both methods use normal critical values. No automatic method selection, multiplicity adjustment or significance flag is supplied.

The sandwich requires many independent sampling units and appropriate regularity. It permits dependence within the declared unit but does not establish independence between units. A small number of units can give poor intervals even with nonsingular covariance. If their scores do not span the free-parameter space, sandwich intervals are unavailable; point estimates and the reason remain. For ordinary fixed-population RSM/PCM, singular/regularized observed information or an ineligible source fit causes an error. Targets fixed by constraints have no inferential interval. Known anchors exclude anchor uncertainty. An ill-conditioned but numerically verified unregularized inverse can be used with a warning. Successful inversion does not establish reliable normal intervals. Review interval width, boundary proximity and quadrature sensitivity; changing to sandwich covariance does not remove this concern.

Native locations

For estimated intercept-only normal RSM/PCM and one-family GPCM MML, method = "model" supplies experimental pointwise normal intervals for locations or contrasts on the model's native ability scale. One-family GPCM also admits the explicit fixed-N(0,1) restriction (gpcm_mml_identification = "fixed_standard_normal"). Shared or separate slope/step owners are supported, with geometric-mean-one relative slopes. Use direct MML, fixed or adaptive integration, unit weights, additive centered facets and centered steps. Anchors, interactions, latent regression and sandwich covariance are unavailable in this added route.

The covariance transforms the inverse full joint marginal information, including all estimated population, slope and step coordinates. A location-only inverse or independent printed SEs cannot replace it. The source, category support, local solution and unregularized information must pass checks; covariance and score changes are also checked at a finer integration order at the same fitted parameter vector. This model-information procedure has no empirical Person-score rank requirement. A numerical refusal preserves the native point and its reason with unavailable SE/bounds. Constraint-fixed targets have no inferential interval.

These numerical checks do not establish sampling coverage, global identification or robustness to misspecification. Native locations are not divided by the estimated population SD; standardized targets would additionally need that SD's uncertainty and cross-covariances. A location difference need not produce a uniform rating difference with unequal slopes or steps. The calculation does not refit or change the saved fit/readiness. Save and attach ci with mfrm_results(fit, intervals = list(locations = ci), compute = "never"); select plot(res, type = "facet_locations") for RSM/PCM or "gpcm_locations" for one-family GPCM. Reports and exports retain the native scale, experimental status and unavailable outputs.

Two-family location targets

For native two-family GPCM MML, select either modeled non-Person facet. The first slope owner's locations sum to zero; the second owner's locations are uncentered on the fixed N(0,1) ability scale. These locations are measured before multiplication by both slope components. Increasing a location lowers expected ratings when ability, slopes and other effects stay fixed. A contrast between actual raters need not imply a uniform difference in expected ratings: their slopes and category-step offsets may also differ. Neither zero nor a location difference defines rater quality or accuracy.

Let J expand the free location coordinates under their fitted constraints and C be the requested contrast matrix. The target covariance is C J V J' C', where V is the location block extracted after inverting the full joint marginal information. Slopes, steps and the other facet remain estimated nuisance parameters. Inverting a location-only Hessian, adding independent printed SEs, or using the EM conditional-objective Hessian would omit their joint estimation uncertainty.

The source fit must pass the same identity, category support, local score rank, stationarity, full-information and finer-quadrature checks used for experimental two-family slope intervals in confint.mfrm_fit(). The full covariance is checked, but passing these numerical checks does not establish repeated-sample coverage for locations or contrasts. Evidence for component slope intervals does not qualify these different targets. These are experimental pointwise normal approximations, with no sandwich, profile, multiplicity or automatic significance decision. A failed check retains estimates and reasons with unavailable intervals, even if the coarse-grid information could be inverted. Constraint-fixed targets have no interval. The calculation does not refit or change quadrature in the saved fit.

For example, use ci <- mfrm_facet_intervals(fit, "Rater"), or supply a named zero-sum row of contrasts for a difference. Plot and save ci directly, or attach it with mfrm_results(fit, intervals = list(locations = ci)) and select plot(res, type = "gpcm_locations"). The model must actually contain the specified facet. Location intervals do not add category-step/curve bands, Person uncertainty, Wright maps or tests of rater competence. Individual two-family rater sheets currently display component-slope intervals only; use the analyst report for these location and contrast results.

What robustness means here

Under model misspecification, the sandwich describes sampling variation around the working model's limiting parameter (its pseudo-true target). That target need not equal the generating rater severity or criterion difficulty. Changing the SE does not correct a biased estimate, informative assignment, unmodeled population differences or MNAR nonresponse. Check the model and assignment before interpreting a severity contrast.

These intervals condition on the observed fixed facet levels. They do not generalize to replacement raters sampled from a rater population. They are not multiway crossed-cluster, G/D-study, variance-boundary, EAP or multiple-imputation intervals. Shared random rater/task effects spanning the declared clusters violate this one-way independence assumption. Numerical success is not a general coverage or rater-diagnosis guarantee. Review quadrature sensitivity separately; the helper reuses the fitted grid.

Bounded evaluation

For the RSM/PCM route, a 1,600-dataset comparison used 80/320 independent persons, three fixed raters and two criteria. In its combined skewed-ability/sparse-design scenario, sandwich coverage of generating contrasts ranged from 87.0 to 95.5 percent despite all intervals being available. Coverage of the independently calculated working-model targets ranged from 93.0 to 97.5 percent. These are ranges across conditions/contrasts, not uncertainty bounds or universal operating characteristics. At 200 datasets per condition, MCSE near 95 percent is about 1.54 percentage points. See vignette("mfrmr-facet-intervals", package = "mfrmr") for the design, interpretation and a complete rater-feedback example.

Save, display and report the selected intervals

Use plot(), as_ggplot() and plot_data() to display or extract the saved result, and apa_table() for tables. Set title = NULL, subtitle = NULL or caption = NULL in the plot to omit that text. For RSM/PCM, attach one result or a named list to mfrm_results(), for example mfrm_results(fit, intervals = list(raters = intervals), include = c("fit", "plots"), compute = "never"). The route plot(res, type = "facet_raters") shows the selected intervals. For two-family GPCM, the corresponding plot type is "gpcm_raters". mfrm_report() and export_mfrm_results() retain the method, level, contrast coefficients, cluster mapping and unavailable outcomes. The source fit must match; replay reloads the saved results without refitting or recomputing covariance. These intervals do not replace uncertainty in ordinary Wright maps, fit diagnostics or Person scores.

References

Zeileis, A. (2006). Object-oriented computation of sandwich estimators. Journal of Statistical Software, 16(9), 1–16. doi:10.18637/jss.v016.i09 . Zeileis, A., Koell, S. and Graham, N. (2020). Various versatile variances: An object-oriented implementation of clustered covariances in R. Journal of Statistical Software, 95(1), 1–36. doi:10.18637/jss.v095.i01 .

Examples

ratings <- load_mfrmr_data("example_core")
fit <- fit_mfrm(ratings, "Person", c("Rater", "Criterion"), "Score")
intervals <- mfrm_facet_intervals(fit, "Rater", method = "sandwich")
summary(intervals)
#>   Target   Estimate         SE       Lower       Upper    ModelSE  ModelLower
#> 1    R01 -0.1838153 0.08409258 -0.34863371 -0.01899684 0.08209147 -0.34471159
#> 2    R02 -0.3088478 0.07488878 -0.45562708 -0.16206847 0.08298771 -0.47150069
#> 3    R03  0.1795027 0.08434452  0.01419045  0.34481490 0.08202273  0.01874108
#> 4    R04  0.3131604 0.09478720  0.12738087  0.49893987 0.08294736  0.15058652
#>    ModelUpper    Status
#> 1 -0.02291895 available
#> 2 -0.14619486 available
#> 3  0.34026428 available
#> 4  0.47573421 available

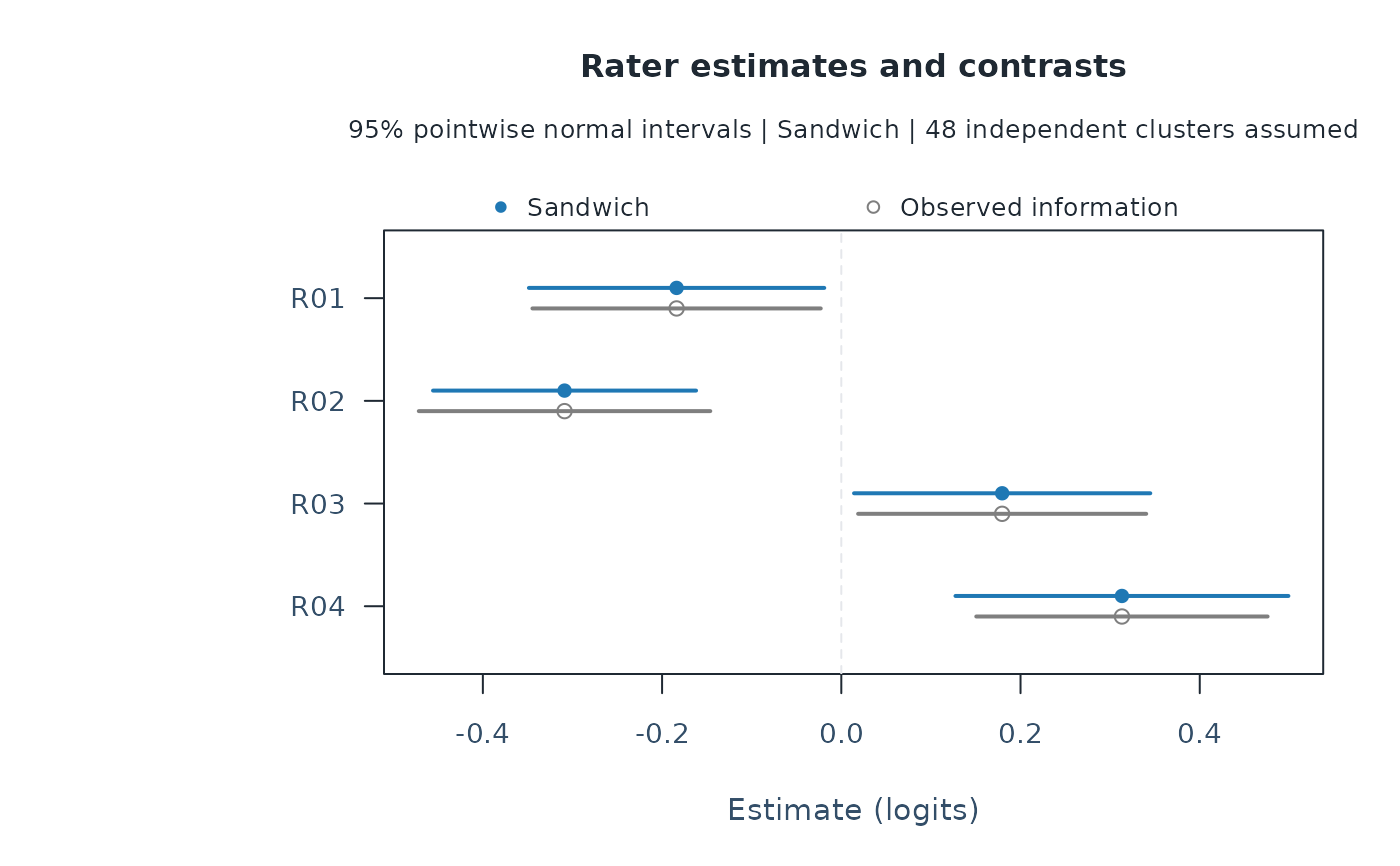

plot(intervals)
