Who scores more strictly? What changes when we add tasks? Which scores does our model predict? Explore each question below, then adapt the code to your own assessment. These examples require the unreleased 0.2.4 candidate; follow the installation instructions. All observations here are synthetic.

Hover or tap to inspect values, drag to zoom and double-click to reset. Click a legend entry to hide or show its series. Each section also provides a static ggplot and a table, so the results remain readable without interaction.

Start with familiar R tools

Install ggplot2, plotly and htmlwidgets if needed. These are optional for mfrmr’s base graphics. The sequence is the same for the supported views:

saved_plot <- plot(result, draw = FALSE)
figure <- as_ggplot(saved_plot)           # Customize with ggplot2
interactive_figure <- plotly::ggplotly(figure)

plot() computes the requested plot data. The conversion steps redraw those saved values; they do not refit the model or create new confidence intervals. The visual guide identifies supported conversions. Check custom geoms, facets, labels and interval layers after conversion; an arbitrary ggplot is not guaranteed to look identical in Plotly.

library(mfrmr)
library(ggplot2)
library(plotly)

# Apply a style to these figures without changing the session's global theme.
gallery_theme <- theme_minimal(base_size = 13) +
  theme(panel.grid.minor = element_blank(),
    panel.grid.major = element_line(colour = "#E6EBF1"),
    axis.title = element_text(colour = "#24334B"),
    axis.text = element_text(colour = "#394B63"),
    legend.position = "bottom", plot.margin = margin(12, 18, 12, 12))

1. See rater differences, together with uncertainty

Load the same ratings as the README: 48 people, six raters and three criteria. Each row is one observed rating; 1 denotes lower and 4 higher performance in this illustrative rubric. Missing ratings are absent rows, not zeros.

ratings <- load_mfrmr_data("example_operational")
fit <- fit_mfrm(ratings, person = "Person", facets = c("Rater", "Criterion"),
  score = "Score", rating_min = 1, rating_max = 4,
  category_policy = "preserve", method = "MML", model = "RSM")
diagnostics <- diagnose_mfrm(fit, residual_pca = "none")
rater_plot <- plot(fit, type = "rater_severity", diagnostics = diagnostics,
  facet = "Rater", draw = FALSE)
rater_values <- plot_data(rater_plot, "data")
rater_gg <- as_ggplot(rater_plot) + gallery_theme +
  labs(x = "Rater severity (logits)", y = NULL)

Read the horizontal position first. Higher rater locations mean lower expected scores for the same person and criterion. The horizontal segments are 95% model-based normal intervals, using this fit’s observed-information SEs. Zero is the centering reference. A location is not a verdict on rater quality, and overlap of two intervals is not a formal pairwise test.

rater_hover <- rater_gg + aes(text = sprintf(
  "Rater: %s<br>Severity: %.2f logits<br>95%% interval: [%.2f, %.2f]<br>Use: %s",
  Level, Estimate, CI_Lower, CI_Upper, CIUse))
rater_widget <- ggplotly(rater_hover, tooltip = "text", height = 420)
rater_widget <- layout(rater_widget, dragmode = "zoom")
rater_widget

Static ggplot and exact values

rater_gg

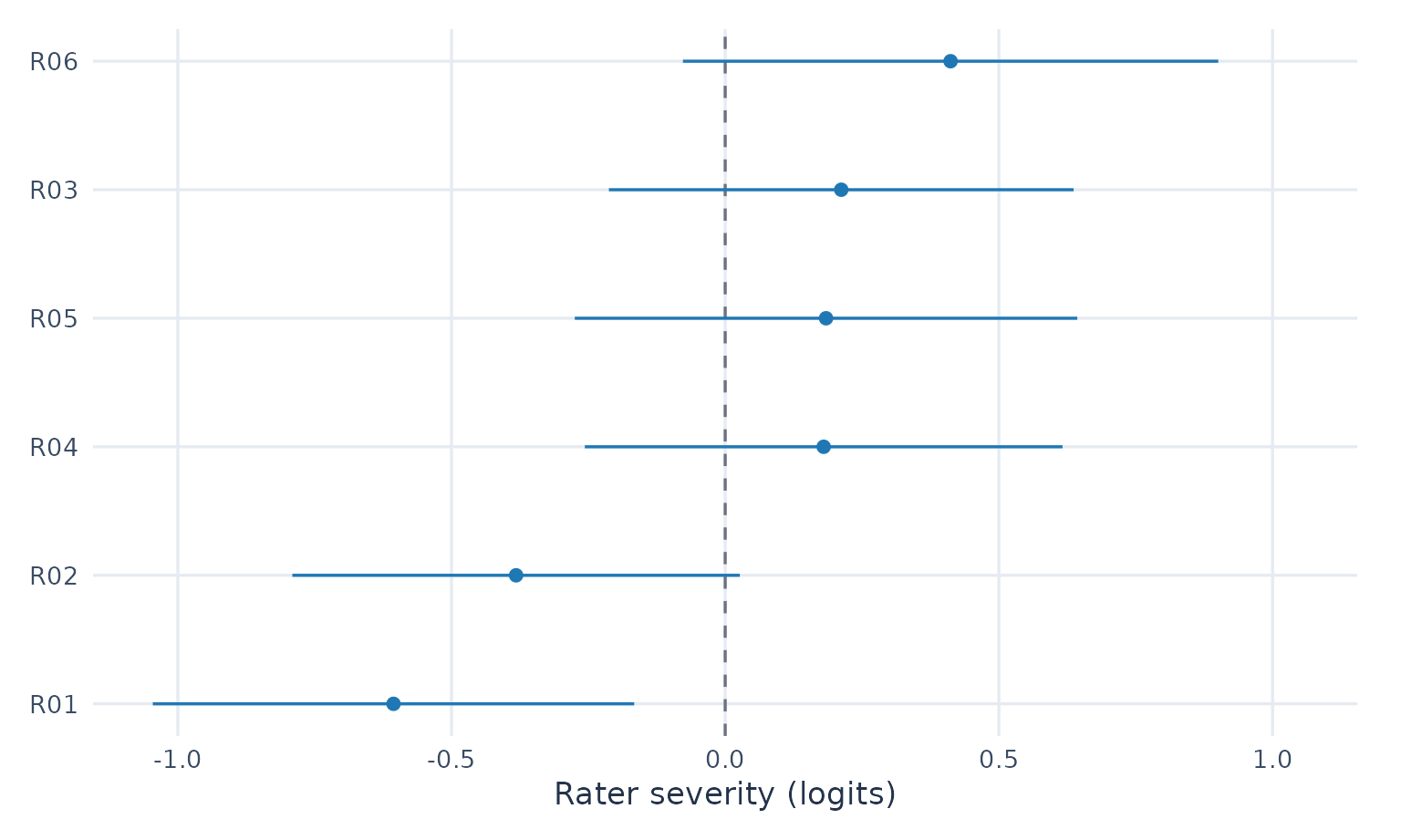

Six rater severity estimates with 95 percent model-based normal intervals. R01 is near minus 0.61 and R06 near plus 0.41 logits. Higher locations mean stricter scoring; zero is a centering reference.

Rater	Logits	95% lower	95% upper	Interval use
R01	-0.606	-1.046	-0.166	primary_reporting
R02	-0.382	-0.791	0.027	primary_reporting
R04	0.180	-0.256	0.616	primary_reporting
R05	0.184	-0.275	0.643	primary_reporting
R03	0.212	-0.212	0.637	primary_reporting
R06	0.412	-0.077	0.901	primary_reporting

R01 and R06 are about -0.61 and 0.41 logits here. For your data, inspect CIEligible, IntervalStatus and CIUse; unavailable bounds must remain unavailable. Keep the assumptions in plot_data(rater_plot, "notes") with the figure. See the rater-interval guide for other interval targets.

2. Compare tasks and raters before collecting more ratings

This is a separate observed-score planning example. The bundled G-study contains 40 persons crossed with eight raters and six tasks. Content and Organization are continuous synthetic score components. We report their prespecified, equally weighted mean and generalize over tasks and raters. These scores and their variances are not MFRM logits.

data("mfrmr_example_gtheory_crossed", package = "mfrmr")
g_study <- mfrm_g_study(mfrmr_example_gtheory_crossed,
  scores = c("Content", "Organization"), person = "Person",
  rater = "Rater", task = "Task")
plans <- expand.grid(Raters = 1:4, Tasks = 1:6)
d_study <- mfrm_d_study(g_study, design_grid = plans,
  weights = c(Content = .5, Organization = .5))
plan_plot <- plot(d_study, metric = "Phi", x_var = "Tasks", draw = FALSE)
plan_values <- plot_data(plan_plot, "series")
plan_gg <- as_ggplot(plan_plot) + gallery_theme +
  labs(x = "Tasks per person", y = "Dependability of absolute score levels (Phi)")

Follow one line to see the effect of more tasks at a fixed rater count. Phi concerns absolute score levels; it is not the probability of a correct pass/fail decision. These are point projections for future complete balanced plans. They omit variance-component estimation uncertainty and do not establish that a plan is adequate for a particular decision. No universal cutoff is drawn.

plan_hover <- plan_gg + aes(text = sprintf(
  "Tasks: %d<br>Raters: %d<br>Ratings per person: %d<br>Phi: %.3f<br>Status: %s",
  Tasks, Raters, Tasks * Raters, Value, Status))
plan_widget <- ggplotly(plan_hover, tooltip = "text", height = 470)
plan_widget

Static ggplot and plans with the same rating count

plan_gg

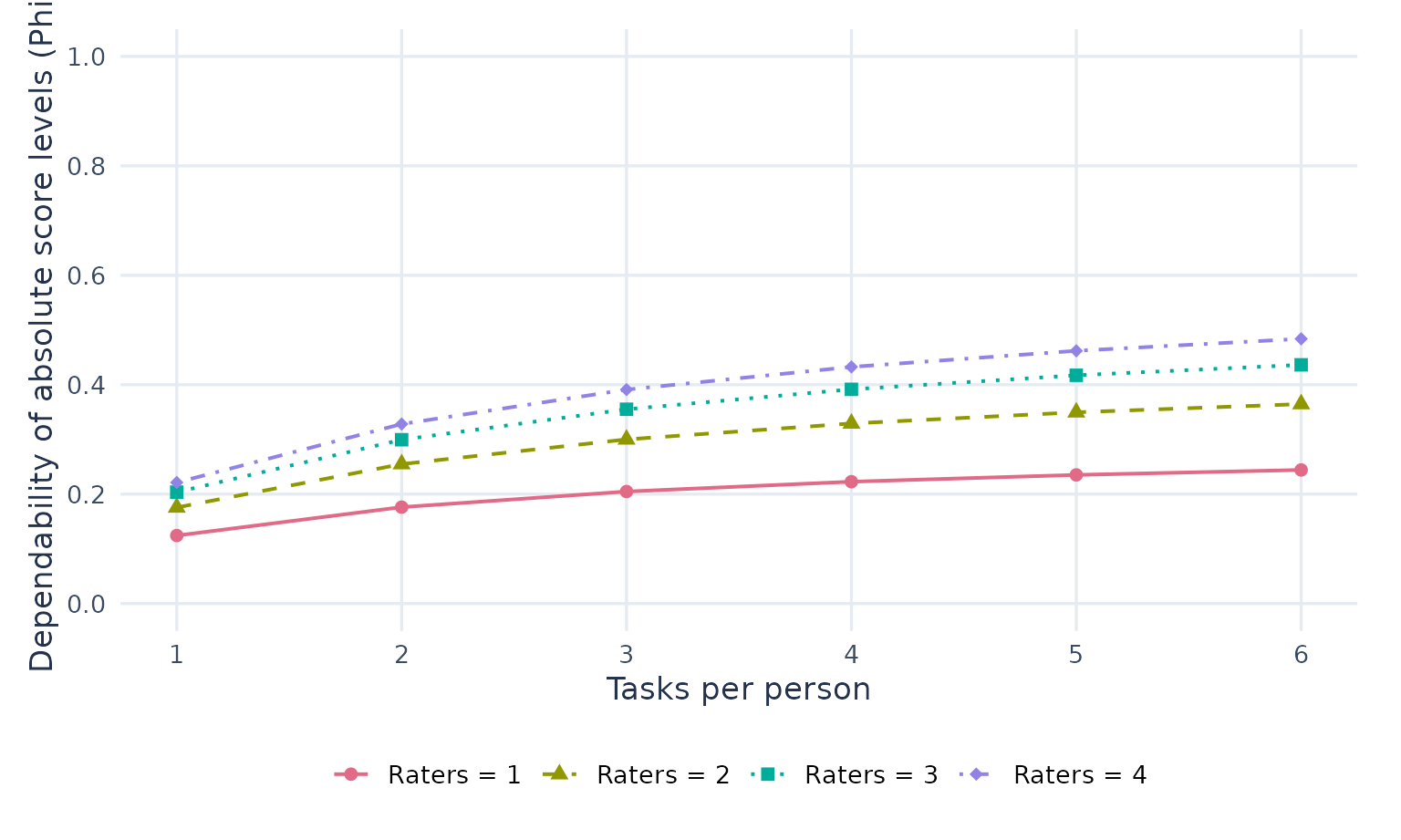

Four curves show projected Phi for one through six tasks with one, two, three or four raters. All use the equally weighted Content and Organization composite. These are point projections without uncertainty intervals.

Tasks	Raters	Phi	Absolute SEM	Status
3	4	0.391	0.814	Available
4	3	0.392	0.813	Available
6	2	0.365	0.861	Available

The table compares 2 × 6, 3 × 4 and 4 × 3 designs, each with twelve ratings per person. Equal rating counts need not mean equal cost or participant burden. For intervals and paired comparisons of plans, continue with the G/D-study tutorial.

3. Explore what a rubric score means in the model

Return to the ordinal RSM fit from section 1. At each person location, the four curves show the predicted probabilities of scores 1–4. This is the saved zero-additive-facet reference profile: rater and criterion effects are held at zero. It does not average across the people and raters in the observed data.

curve_plot <- plot(fit, type = "ccc", draw = FALSE)
curve_values <- plot_data(curve_plot, "probabilities")
curve_gg <- as_ggplot(curve_plot) + gallery_theme +
  labs(x = "Person location (logits)", y = "Probability of the coded score")
# This example has four categories in one common RSM curve group.
stopifnot(length(unique(curve_values$CurveGroup)) == 1L)
categories <- unique(as.character(curve_values$Category))

Move along the horizontal axis and compare all four curves. A score with a higher probability is still not a certain outcome. The curves are model point predictions, not confidence bands or evidence that the rubric measures the intended construct. Hiding a category does not renormalize the remaining probabilities.

curve_hover <- curve_gg + aes(text = sprintf(
  "Score: %s<br>Person location: %.2f logits<br>Probability: %.3f",
  Category, Theta, Probability))
curve_widget <- ggplotly(curve_hover, tooltip = "text", height = 450)
# Keep readable score labels if conversion appends internal group numbers.
for (i in seq_along(categories)) {
  curve_widget <- style(curve_widget, name = categories[i],
    legendgroup = categories[i], traces = i)
}
curve_widget

Static ggplot and probabilities at the reference person location

curve_gg

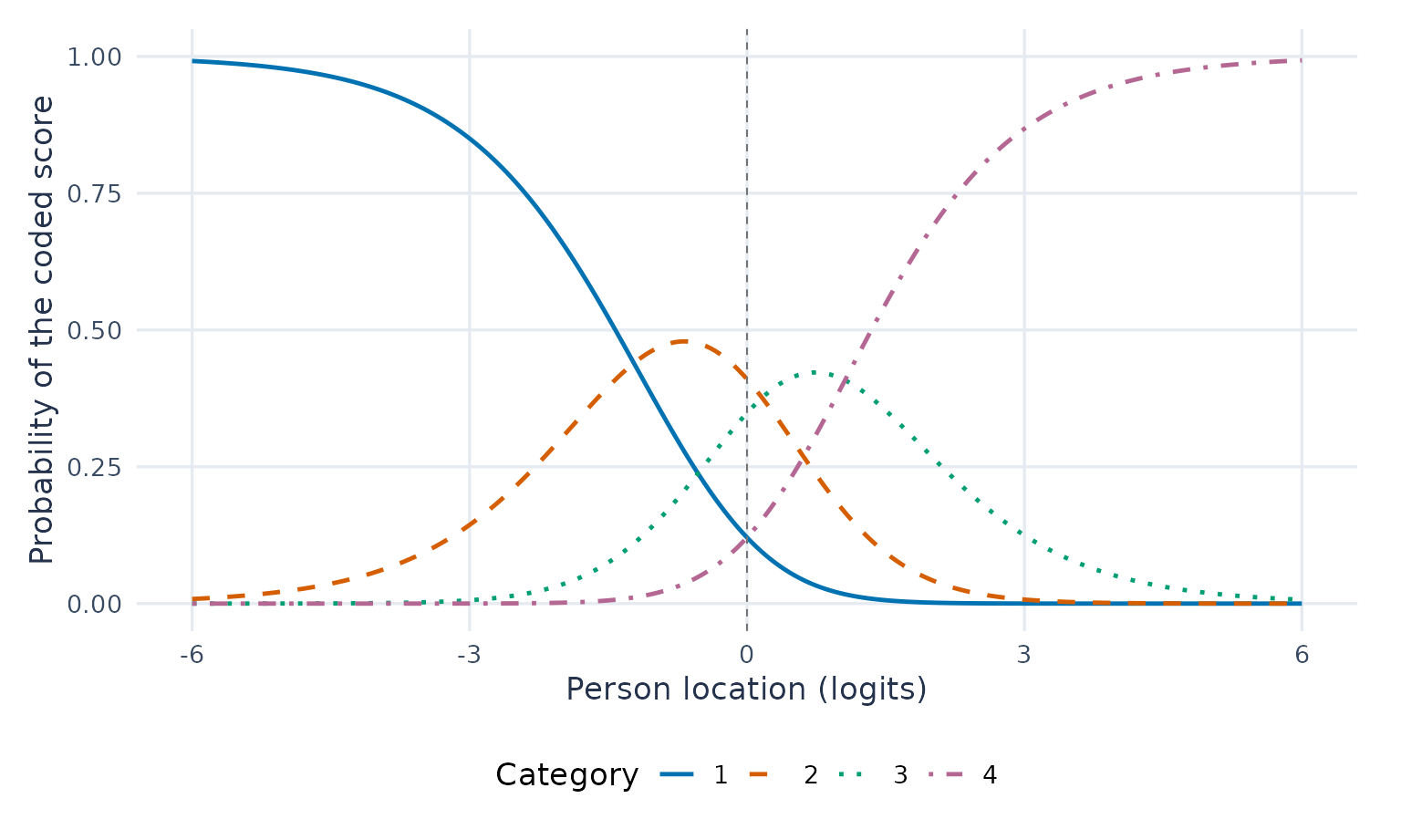

Four category probability curves across person locations. Score 1 predominates at low locations and score 4 at high locations. Probabilities sum to one at each location for the zero-additive-facet RSM reference profile.

Score	Probability at zero	Reference profile
1	0.121	zero_additive_facet_profile
2	0.410	zero_additive_facet_profile
3	0.348	zero_additive_facet_profile
4	0.121	zero_additive_facet_profile

Always state the coding direction: a higher score for ease of understanding means something different from a higher score for difficulty understanding. The model follows your coded scores; it cannot infer the intended direction.

Keep the figure, values and interpretation together

Use ggsave() for the static ggplot and saveWidget() for a browser-readable interactive HTML file. No Plotly account or running R server is needed for these views. A shared HTML file includes its plotted data; use suitable identifiers and remember that filtering or hiding a trace does not remove those data.

Run these commands in a folder where you want to keep the outputs. Self-contained HTML export requires Pandoc. With selfcontained = FALSE, keep the accompanying assets directory together with the HTML file.

ggsave("rater-severity.png", rater_gg, width = 7, height = 4.5, dpi = 300)
htmlwidgets::saveWidget(rater_widget, "rater-severity.html", selfcontained = TRUE)
write.csv(plot_data(rater_plot, "data", format = "long",
  value_cols = c("Estimate", "CI_Lower", "CI_Upper")),
  "rater-severity-long.csv", row.names = FALSE)
saveRDS(list(source = rater_plot, figure = rater_gg, widget = rater_widget,
  notes = plot_data(rater_plot, "notes")), "rater-severity.rds")

The saved mfrmr plot retains the interval definitions and diagnostics. ggplotly() returns a Plotly widget, not an mfrmr result; keep its source plot and notes alongside it. Use plot_data_components() to inspect available tables and plot_data(..., format = "long", value_cols = ...) to build your own views. For a raincloud of observed scores, use the original rating rows: estimates and interval endpoints are different quantities. Hovering, zooming and legend filtering change the display, not the fitted model or analysis population. New model fitting in a browser would require a separately hosted R application.
